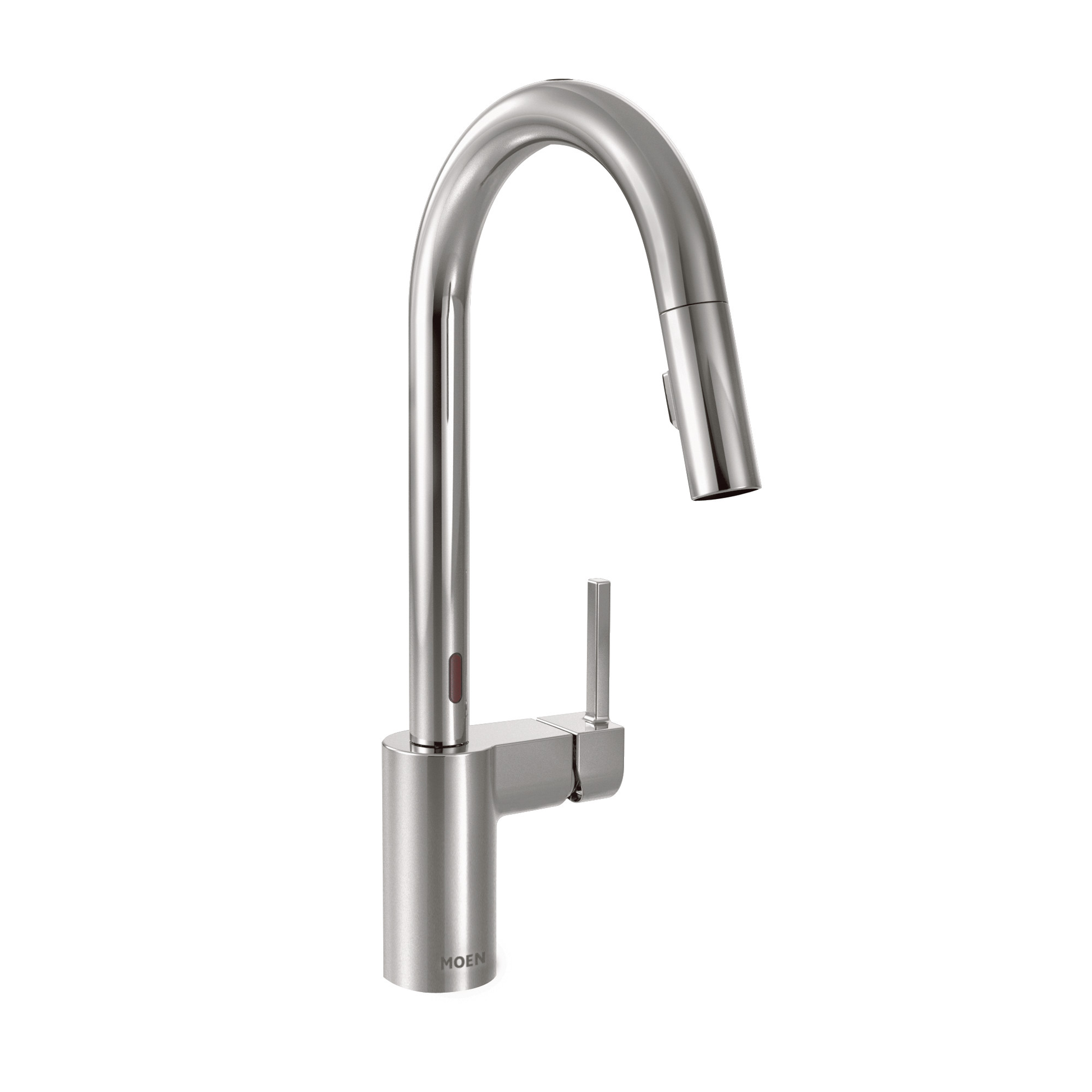

Product Description
From intimate galley kitchens to large gourmet workstations, Align faucets bring a refreshed, Modern look to your home. Simple lines create the contemporary style.
Key Features
- delivers exceptional hands-free convenience, allowing a simple hand movement to trigger the flow of water
- Spot Resist™ stainless finish resists fingerprints and water spots for a cleaner looking kitchen
- Power Clean™ spray technology provides 50 percent more spray power versus most of our pulldown and pullout faucets without the Power Clean™ technology.
- equipped with the Reflex™ system for smooth operation, easy movement and secure docking of the pulldown/pullout spray head
- faucet pulldown hose offers flexible water delivery and hose retracts with ease
- features Duralock™ quick connect system for easy installation
- one-handle
- lever handle makes it easy to adjust the water
- aerated stream for everyday cleaning; powerful rinse for heavy-duty cleaning
- standard design mounts on the sink or countertop
- complies with Americans with Disabilities Act (ADA) specifications
- meets current legislation, including ab1953 (california) and s152 (vermont)
- 5 year warranty on digital components; limited lifetime trim warranty
- deck plate sold separately

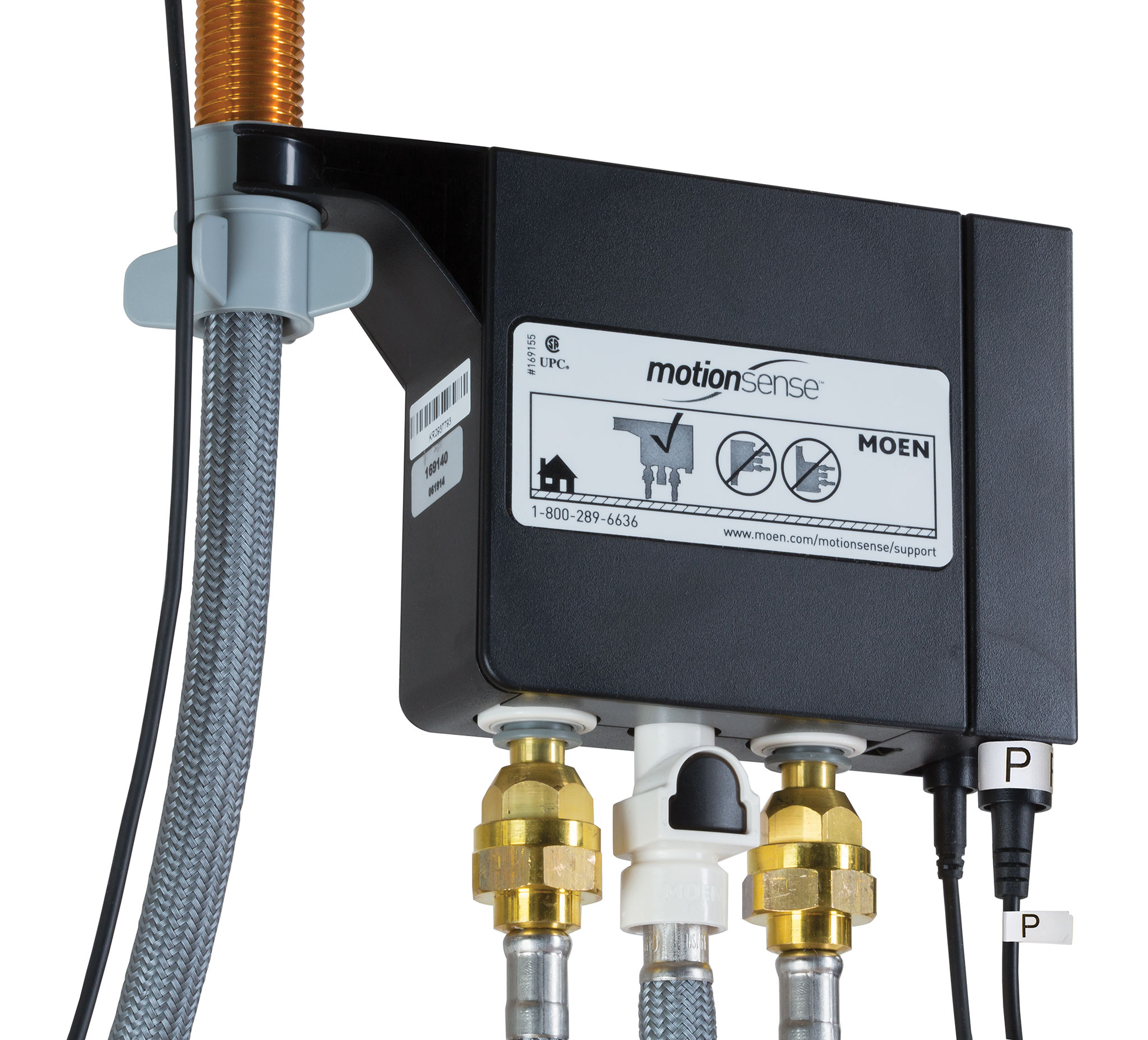

- Please note that when using the AC Adapter with this item, we recommend plugging it into an outlet that is not controlled by an ON/OFF switch. If the AC Adapter is plugged into the wall outlet designated for a garbage disposal, oftentimes that outlet is controlled by a switch, thereby not allowing the MotionSense faucet to function when the switch is in the OFF position.
Product Specifications
Application
One Or Three Hole
Spout Height
15.70 "
Spout Reach
7.50 "
Connection Size
3/8"
Connection Type
Compression
Number Of Functions
Two-Function
Spray Type
Aerated Stream; Powerful Cleaning Rinse
Water Usage
1.5 Gpm (5.7 L/Min) Max.
Handle Mounting
Right Only
Hose Length
68"
Documents Overview
Product Help
Replacement Parts
| Part Number | Price | |
|---|---|---|
|
118305
Moen Installation Tool |
$15.11 | View Part |
|
155023
Screw Kit |
$6.08 | View Part |
|
150259
Moen Hose Kit |
$39.71 | View Part |
|
152859
Plug Button Kit |
$6.08 | View Part |
|
193774
Moen Mounting Hardware |
$6.50 | View Part |
|
141025
Moen O-ring Kit |
$13.91 | View Part |
|
160660
Cartridge Nut |
$7.28 | View Part |
|
141002
Moen Escutcheon |
$58.28 | View Part |
|
152859CSL
Plug Button Kit |
$7.13 | View Part |
|
160660SRS
Cartridge Nut |
$18.49 | View Part |
|
169031
Moen Adapter Kit |
$150.38 | View Part |
|
177566
Moen Mounting Hardware |
$49.43 | View Part |
|
159060
Moen Pullout/pulldown Hose Management System (hose Guide) |
$22.91 | View Part |
|
168498
Gasket |
$6.19 | View Part |
|
177567
Moen Battery Kit |
$18.30 | View Part |
|
177569
Moen Service Kit |
$247.73 | View Part |
|
177572
Moen Hose Kit |
$30.08 | View Part |
|
179639
Brantford With Motionsense Filter |
$16.05 | View Part |
|
168492
Wand Kit |
$109.01 | View Part |
|
168494
Handle Kit |
$28.46 | View Part |
|
168494SRS
Handle Kit |
$41.33 | View Part |
|
177568
Moen Service Kit |
$130.54 | View Part |
|
168492SRS
Wand Kit |
$157.95 | View Part |
|
177575
Moen Spout Kit |
$451.20 | View Part |
| 177575SRS | — | View Part |
