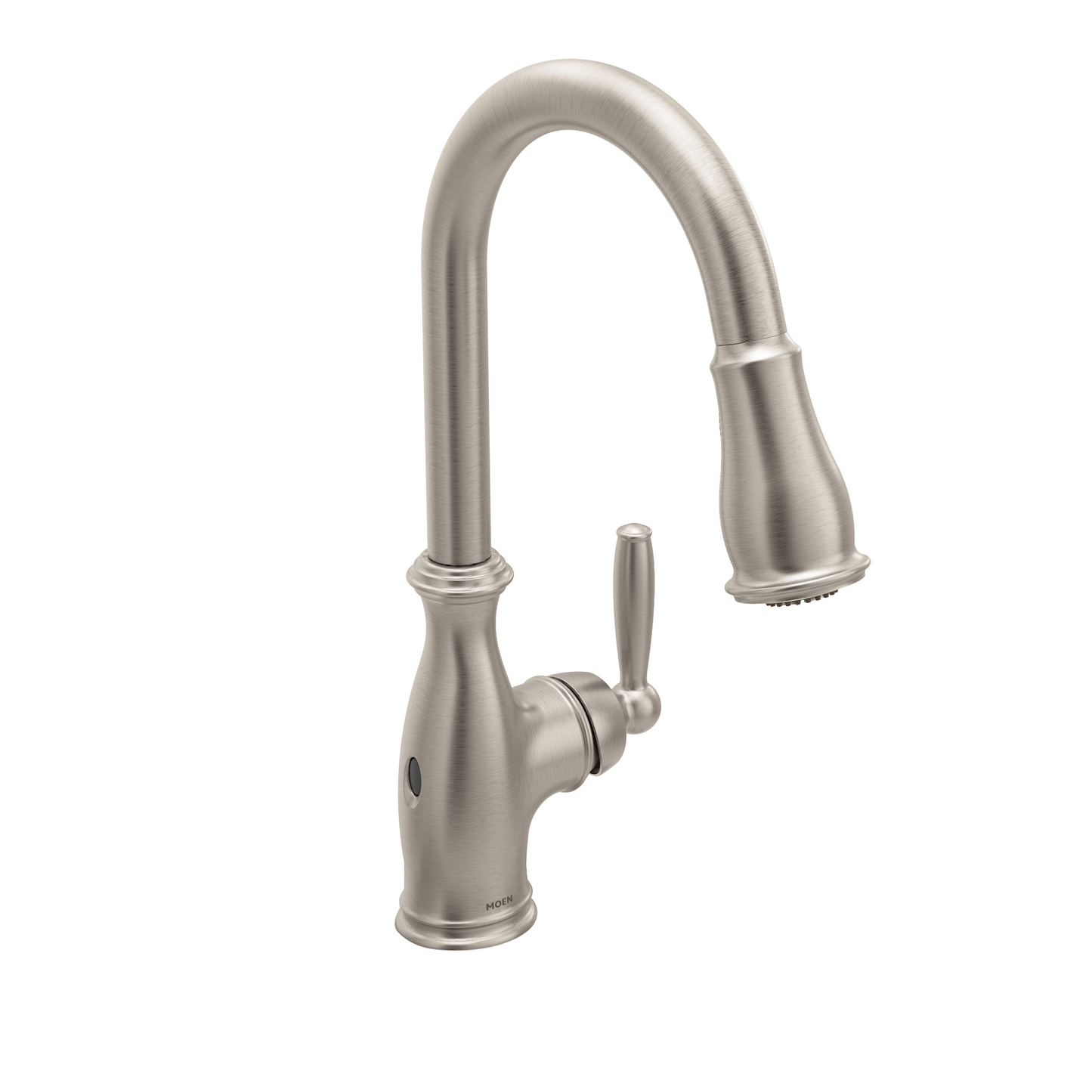

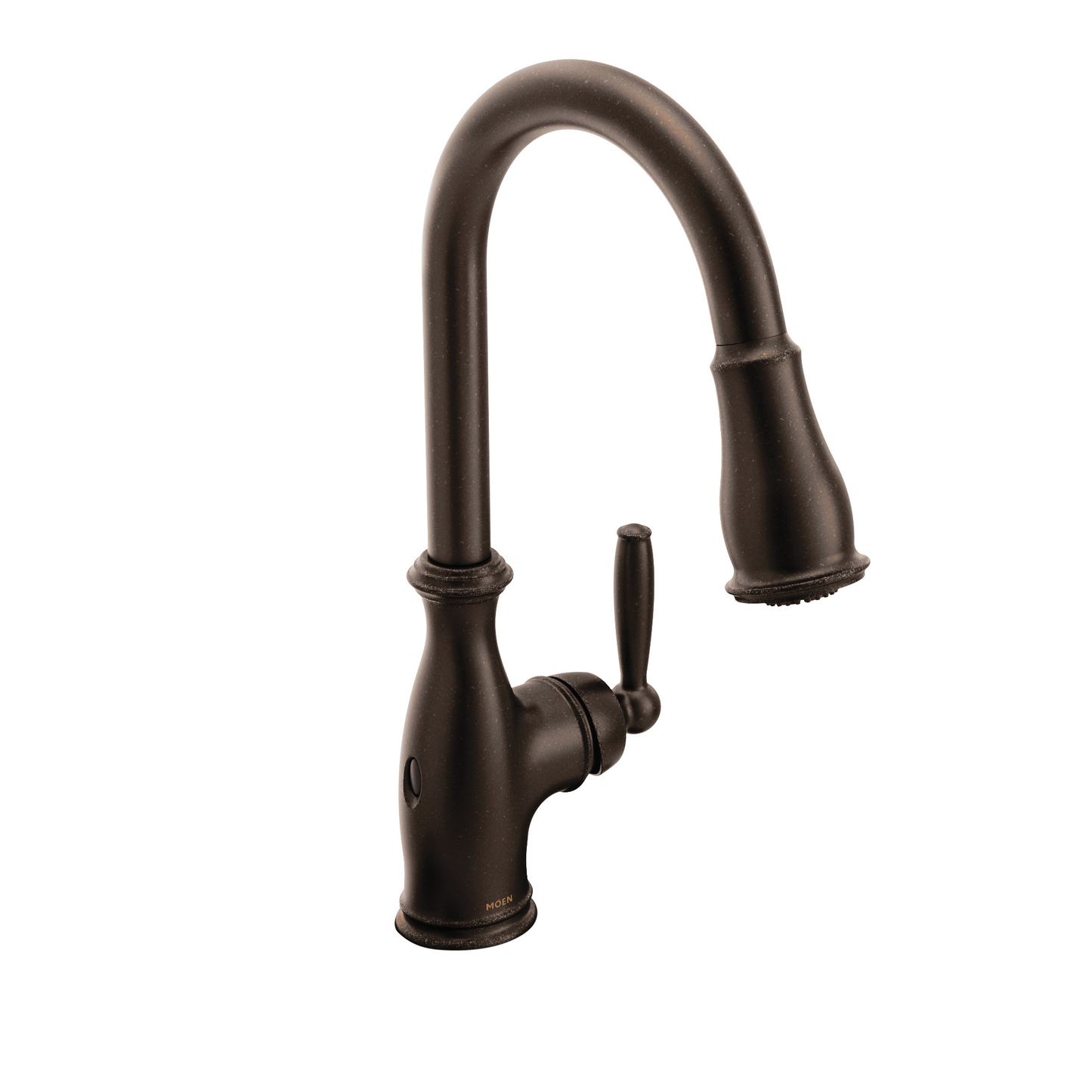

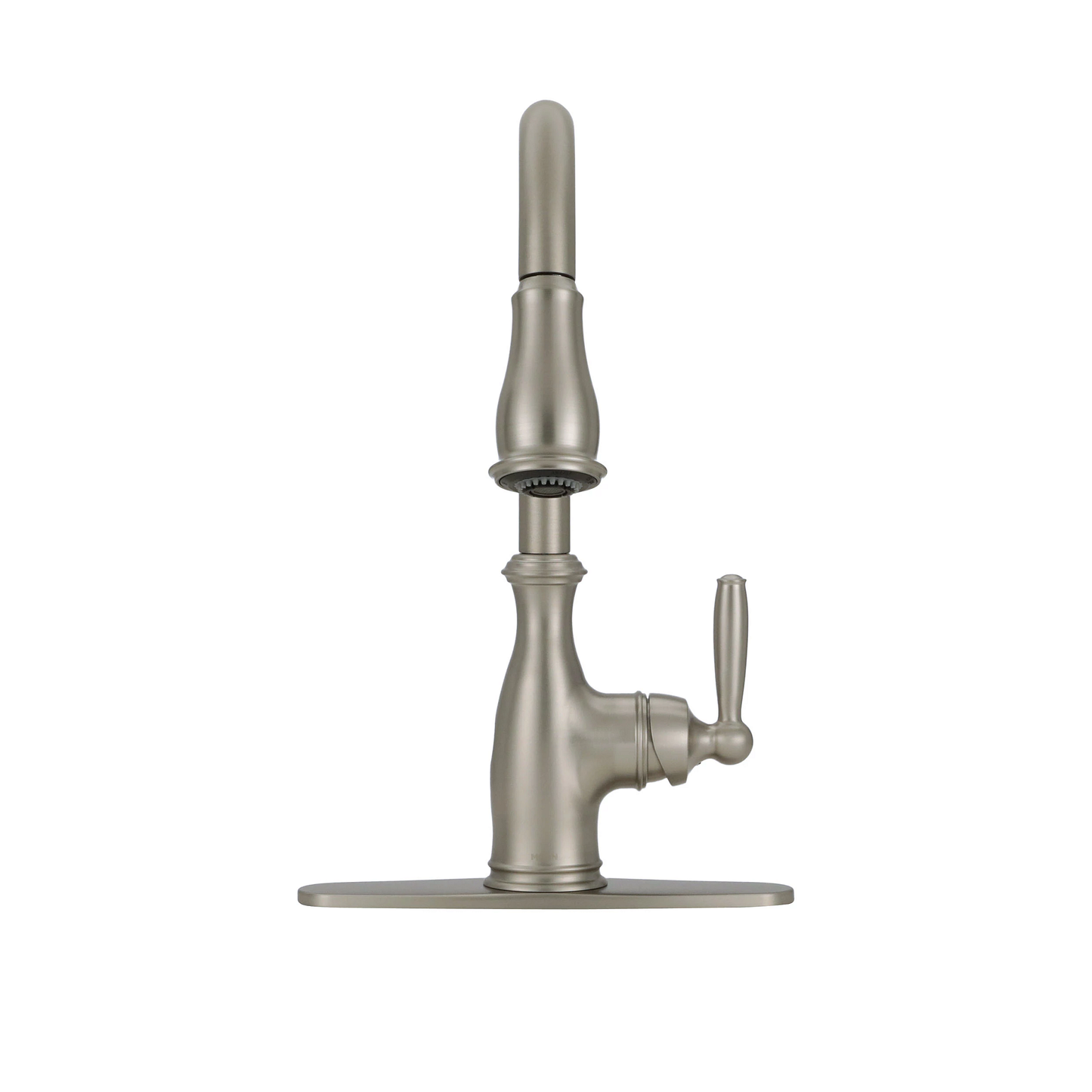

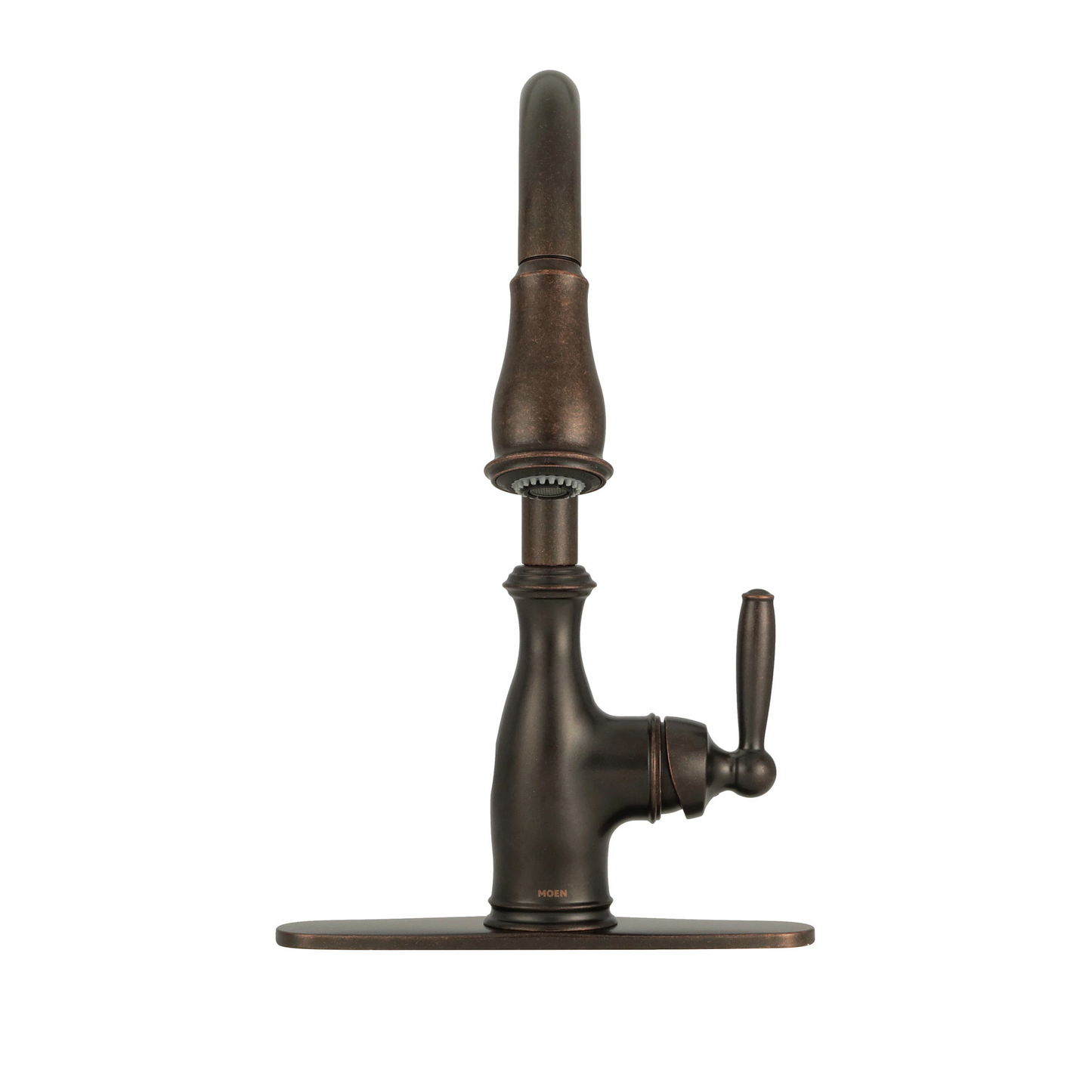

Product Description
Like the best decorative appointments, Brantford kitchen and bar/prep faucets make a Traditionally styled space feel truly finished. The spout enhances the curvature of the faucet body and handle, for a truly polished look.
Key Features
- featuring single-sensor hands-free activation, this faucet allows you to easily turn water on and off with the wave of a hand. no need to touch the faucet with dirty or wet hands.
- chrome finish is highly reflective for a mirror-like look that works with any decorating style
- Power Clean™ spray technology provides 50 percent more spray power versus most of our pulldown and pullout faucets without the Power Clean™ technology.
- equipped with the Reflex™ system for smooth operation, easy movement and secure docking of the pulldown/pullout spray head
- faucet pulldown hose offers flexible water delivery and hose retracts with ease
- features Duralock™ quick connect system for easy installation
- one-handle
- lever handle makes it easy to adjust the water
- powerful rinse for heavy-duty cleaning; pause function lets you conveniently stop water flow from the spray head; aerated stream for everyday cleaning
- standard design mounts on the sink or countertop
- complies with Americans with Disabilities Act (ADA) specifications
- meets current legislation, including ab1953 (california) and s152 (vermont)
- 5 year warranty on digital components; limited lifetime trim warranty
- deck plate sold separately
- Every drop, certified safe: Every Moen residential kitchen and bath faucet complies with the Federal Safe Drinking Water Act and NSF 61 standards - making Moen the safe choice for clean drinking water
Product Specifications
Application
One Or Three Hole
Spout Height
15.50 "
Spout Reach
7.88 "
Connection Size
3/8"
Connection Type
Compression
Number Of Functions
Three-Function
Spray Type
Powerful Cleaning Rinse; Pause Function; Aerated Stream
Water Usage
1.5 Gpm (5.7 L/Min) Max.
Handle Mounting
Right Only
Hose Length
68"
Deckplate
Included
Documents Overview
CAD Details
Product Help
Replacement Parts
| Part Number | Price | |
|---|---|---|
|
118305
Moen Installation Tool |
$15.11 | View Part |
|
155023
Screw Kit |
$6.08 | View Part |
|
150259
Moen Hose Kit |
$39.71 | View Part |
|
152859
Plug Button Kit |
$6.08 | View Part |
|
193774
Moen Mounting Hardware |
$6.50 | View Part |
|
158550
Moen Check Valve Kit |
$5.74 | View Part |
|
141002
Moen Escutcheon |
$58.28 | View Part |
|
152859CSL
Plug Button Kit |
$7.13 | View Part |
|
169031
Moen Adapter Kit |
$150.38 | View Part |
|
177566
Moen Mounting Hardware |
$49.43 | View Part |
|
152859ORB
Plug Button Kit |
$7.13 | View Part |
|
177569
Moen Service Kit |
$247.73 | View Part |
|
177567
Moen Battery Kit |
$18.30 | View Part |
|
177572
Moen Hose Kit |
$30.08 | View Part |
|
188031
Moen Electronics Box |
$103.50 | View Part |
|
176078
Moen Spout Kit |
$107.40 | View Part |
|
140997
Moen Dome Kit |
$13.95 | View Part |
|
141002ORB
Moen Escutcheon |
$68.81 | View Part |
|
176078SRS
Moen Spout Kit |
$117.56 | View Part |
|
179639
Brantford With Motionsense Filter |
$16.05 | View Part |
|
140997ORB
Moen Dome Kit |
$28.91 | View Part |
|
153978
Moen Handle Kit |
$36.04 | View Part |
|
153978ORB
Moen Handle Kit |
$58.65 | View Part |
|
153978SRS
Moen Handle Kit |
$44.78 | View Part |
|
161157
Moen Wand Kit |
$55.35 | View Part |
|
193499
Brantford Spout Kit |
$297.90 | View Part |
|
193499SRS
Brantford Spot resist stainless Spout Kit |
$349.61 | View Part |
| 193499ORB | — | View Part |
