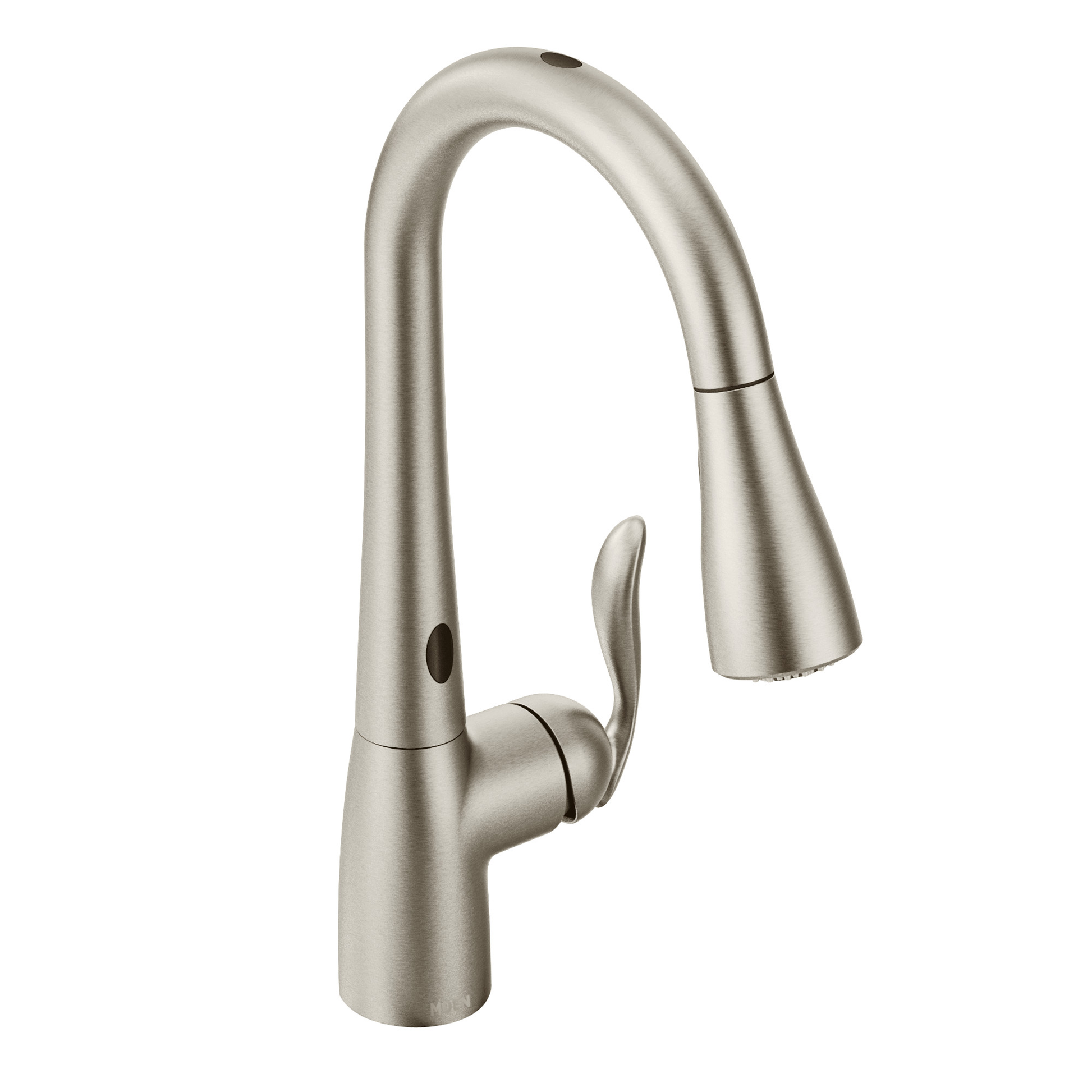

Product Description
Arbor is filled with smooth profiles, slight flairs, and subtle curves. Arbor's smooth profile is tailored to perfection. The slight flair of the handle and the curve of the spout make this a Transitional look that works with a variety of decorating styles.
Key Features
- delivers exceptional hands-free convenience, allowing a simple hand movement to trigger the flow of water
- chrome finish is highly reflective for a mirror-like look that works with any decorating style
- Power Clean™ spray technology provides 50 percent more spray power versus most of our pulldown and pullout faucets without the Power Clean™ technology.
- equipped with the Reflex™ system for smooth operation, easy movement and secure docking of the pulldown/pullout spray head
- faucet pulldown hose offers flexible water delivery and hose retracts with ease
- features Duralock™ quick connect system for easy installation
- one-handle
- lever handle makes it easy to adjust the water
- powerful rinse for heavy-duty cleaning; pause function lets you conveniently stop water flow from the spray head; aerated stream for everyday cleaning
- standard design mounts on the sink or countertop
- complies with Americans with Disabilities Act (ADA) specifications
- meets current legislation, including ab1953 (california) and s152 (vermont)
- 5 year warranty on digital components; limited lifetime trim warranty
- Please note that when using the AC Adapter with this item, we recommend plugging it into an outlet that is not controlled by an ON/OFF switch. If the AC Adapter is plugged into the wall outlet designated for a garbage disposal, oftentimes that outlet is controlled by a switch, thereby not allowing the MotionSense faucet to function when the switch is in the OFF position.
Product Specifications
Application
One Or Three Hole
Spout Height
15.50 "
Spout Reach
7.87 "
Connection Size
3/8"
Connection Type
Compression
Number Of Functions
Three-Function
Spray Type
Powerful Cleaning Rinse; Pause Function; Aerated Stream
Water Usage
1.5 Gpm (5.7 L/Min) Max.
Handle Mounting
Right Only
Hose Length
68"
Deckplate
Included
Documents Overview
CAD Details
Product Help
Replacement Parts
| Part Number | Price | |
|---|---|---|
|
118305
Moen Installation Tool |
$15.11 | View Part |
|
155023
Screw Kit |
$6.08 | View Part |
|
150259
Moen Hose Kit |
$39.71 | View Part |
|
152859
Plug Button Kit |
$6.08 | View Part |
|
193774
Moen Mounting Hardware |
$6.50 | View Part |
|
141002
Moen Escutcheon |
$58.28 | View Part |
|
169031
Moen Adapter Kit |
$150.38 | View Part |
|
152859ORB
Plug Button Kit |
$7.13 | View Part |
|
177567
Moen Battery Kit |
$18.30 | View Part |
|
177569
Moen Service Kit |
$247.73 | View Part |
|
177572
Moen Hose Kit |
$30.08 | View Part |
|
140997
Moen Dome Kit |
$13.95 | View Part |
|
148821
Moen Gasket Kit |
$6.64 | View Part |
|
141002ORB
Moen Escutcheon |
$68.81 | View Part |
|
179639
Brantford With Motionsense Filter |
$16.05 | View Part |
|
148820
Moen Handle Kit |
$33.41 | View Part |
|
177568
Moen Service Kit |
$130.54 | View Part |
|
173720
Moen Check Valve Kit |
$3.75 | View Part |
|
161150

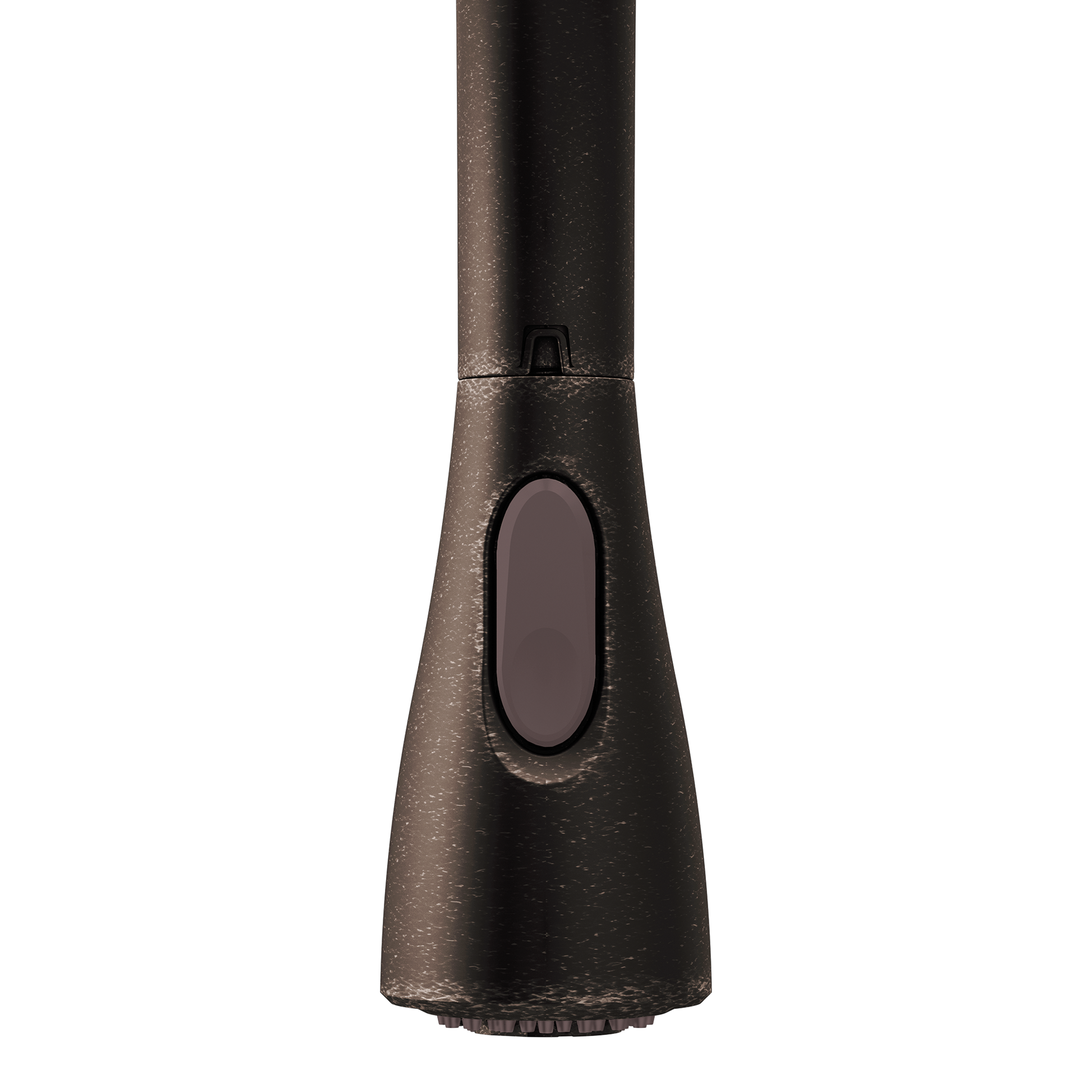

Moen Wand Kit |
$99.83 | View Part |
|
161150ORB
Moen Wand Kit |
$123.98 | View Part |
|
131380
Moen Wand Kit |
$45.38 | View Part |
|
131380ORB
Moen Wand Kit |
$66.64 | View Part |
|
177573
Moen Spout Kit |
$472.24 | View Part |
